Square U-Bolts for pipe mounting, channel steel, and H-Beam
Square U-Bolts are made by cutting round bar and making thread by rolling machine. Then bend it into square shape. In some case, surface plating will be applied after bending process.
Square U-Bolts are originally made by preparing two steel plates with two holes drilled on the plates and fastened with hexagon bolts and nuts to transport large material onto H-Beam.

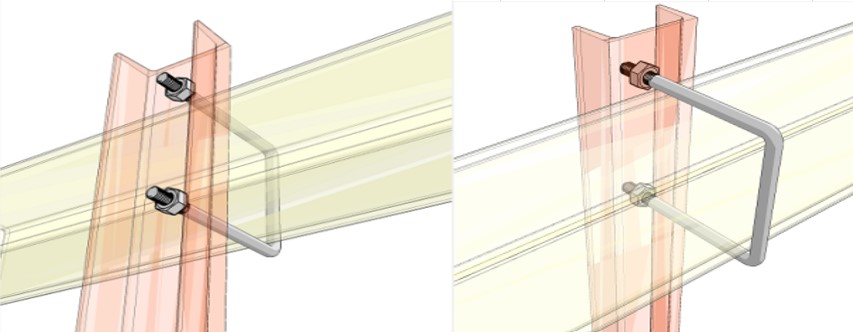

This product suits most for fixing application during shipping with Square pipes, Channels, H-Beam, and etc.

In that case, you have to prepare two steel plates with two drilled holes and also bolts and nuts set, but if you have Square U-Bolts, you can easily replace it instead of original way. This will increase your work performance and ost as well.
We do have variety of Square U-Bolts for your selection based on your application and what are you going to fix. Not only wide range of stock of Square U-Bolts that match with H-Beam but we also provide made to order product that suit most to your application as well.

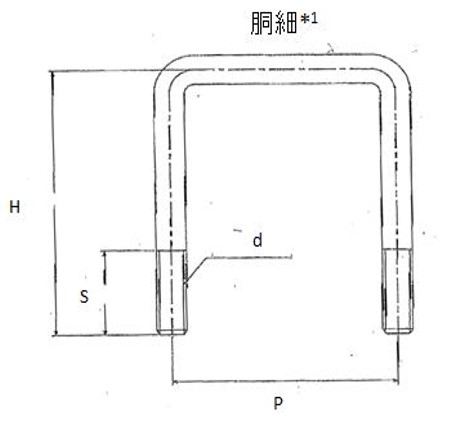

Square U-Bolt drawing square U-Bolt application コの字ボルト 図面

Square U-Bolts suits most for fixing application during shipping with Square pipes, Channels, H-Beam, and etc.

Material: Steel

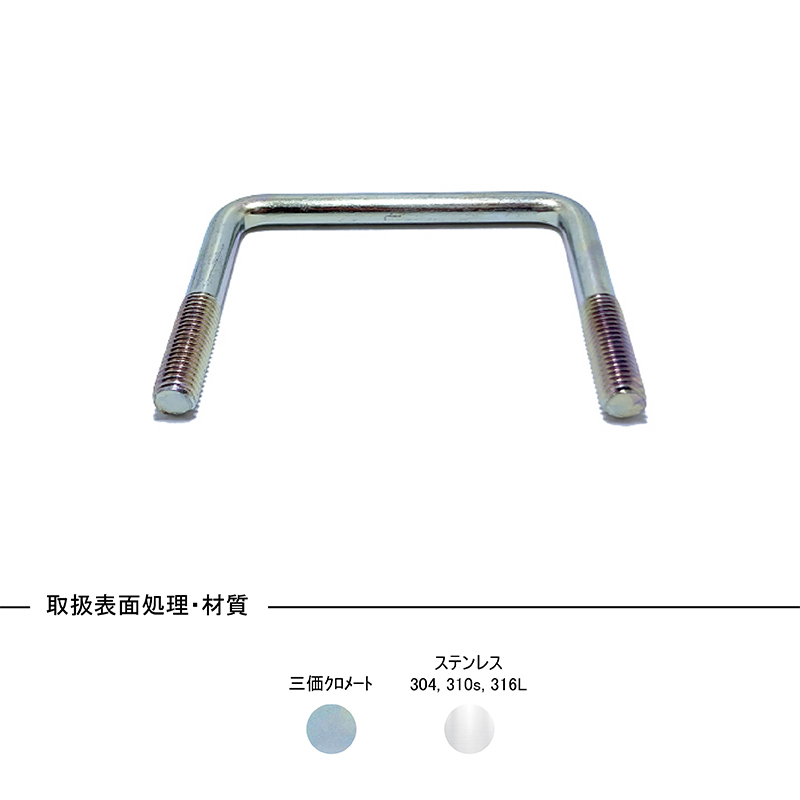

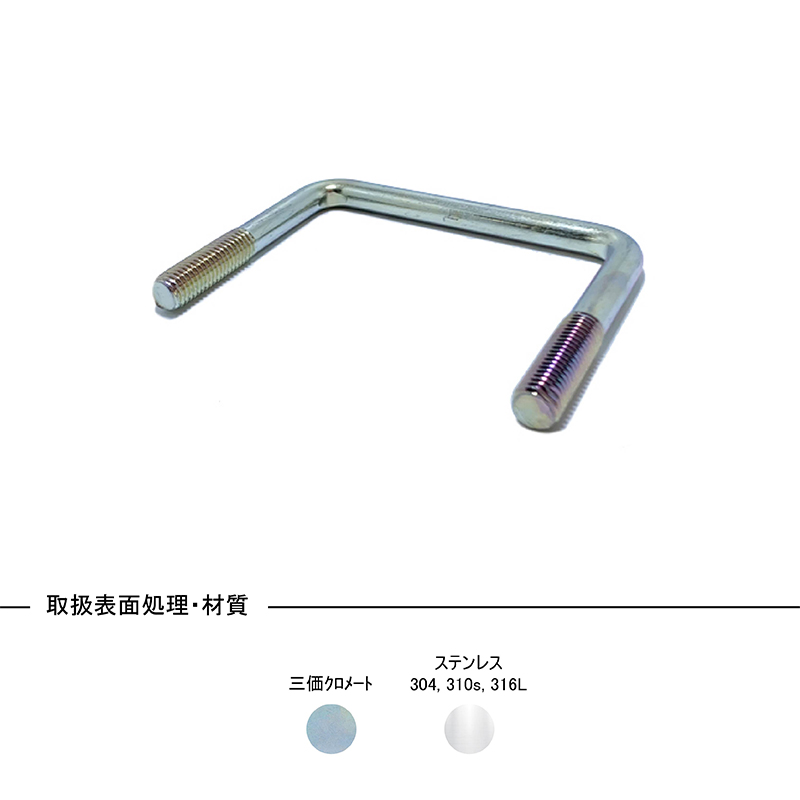

Surface treatment: Trivalent chromate and other as customer request

*1: The body (non-threaded part) is slightly thinner than the threaded part


Model numberSquare pipe/Channel sizedPHS
KO-5050M8□50X□50M8607530
KO-5050M10□50X□50M10628030
KO-5050M12□50X□50M12658535
KO-75125M12□75X□125     M129016035
KO-75125M16□75X□125     M169517040
KO-7540M10□75X□40M10877030
KO-7540M12□75X□40M12907535
KO-7545M8□75X□45M8857030
KO-7545M10□75X□45M10877535
KO-7545M12□75X□45M12907535
KO-7575M8□75X□75M88510030
KO-7575M10□75X□75M108710535
KO-7575M12□75X□75M129011035
KO-10050M12□100X□50M121158535
KO-10050M16□100X□50M161189540
KO-100100M12□100X□100M1211513535
KO-100100M16□100X□100M1612014540
KO-12550M12□125X□50M121409535
KO-12550M16□125X□50M1614510540
KO-12565M12□125X□65M1214011035
KO-12565M16□125X□65M1614512040
KO-12575M12□125X□75M1216511035
KO-12575M16□125X□75M1617012040
KO-15075M12□150X□75M1216511535
KO-15075M16 □150X□75M1617012040
KO-15080M12□150X□80M1216511535
KO-15080M16□150X□80M1617012540
KO-150150M12□150X□150M1216518035
KO-150150M16□150X□150M1617019540
KO-150100M16□150X□150M1617014535
